4. Transmitter
Transmitter type
Microprocessor controlled digital device
Calibration settings
Basic factory calibration to velocity. Software based menu driven operator
interface for on-site setup
Supply voltage
12-24V DC
Power consumption
6 Watt
0.5 Amp
A 12V car battery would drive the flowmeter for about 20 hours of continuos
operation

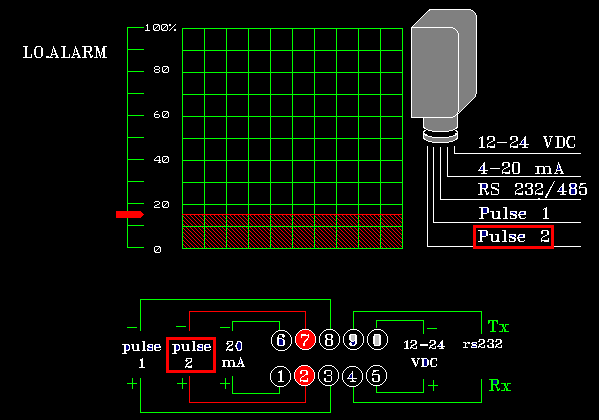

Output signals
4-20mA, RS 232/485 (digital),
Pulse; (+ and - flow)

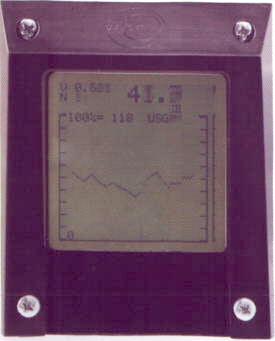

Local indicator
128x128 graphic, flow, velocity,
trend, total
Memory
Magio 2.0 (DOS) 2000 sample, volatile, adjustable flow recording
Magio 3.0 (WIN9X) none or 20000 sample nonvolatile (optional datalogger)
Enclosure Rating
NEMA 4X
5. Additional Requirements

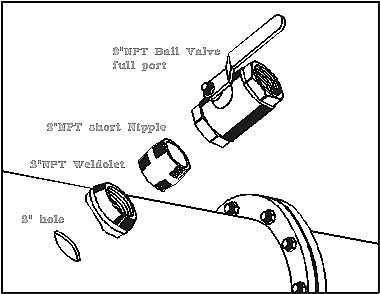

2" NPT nipple, threadolet and
full-bore ball-valve hot tap installation of Universal Mount
