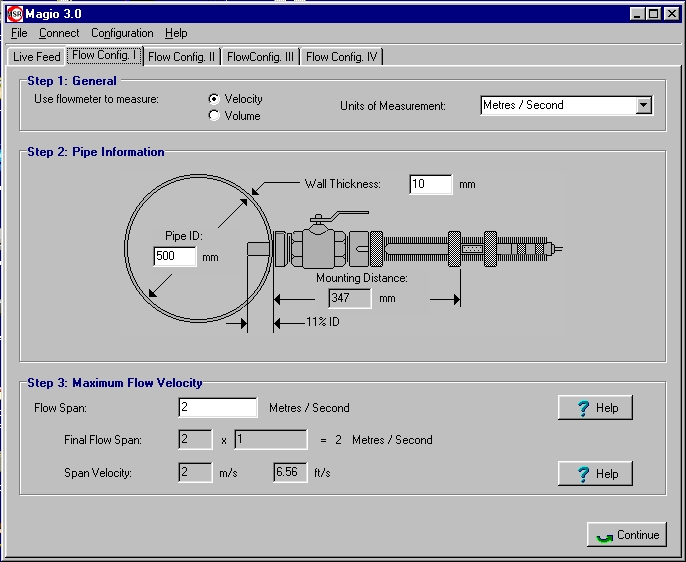

In order to change any of the settings with which the flowmeter was shipped, or to change existing settings a previous user chose originally, click on the "Flow Config. I" tab and you will get the following screen. Proceed to choose the desired settings by clicking on pull-down menus and entering numbers. This should be fairly self-explanatory. The software will automatically calculate and display the insertion dimension and present the user with a proposed range for the meter, based on an average flow velocity of 2 m/s (~6ft/s). This represents most common applications, but can be overridden by the user to chose a specific range. If you require further information click and hold any of the "help" buttons. Once you are done click "Continue".
